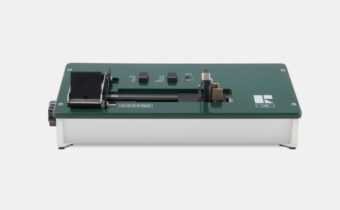

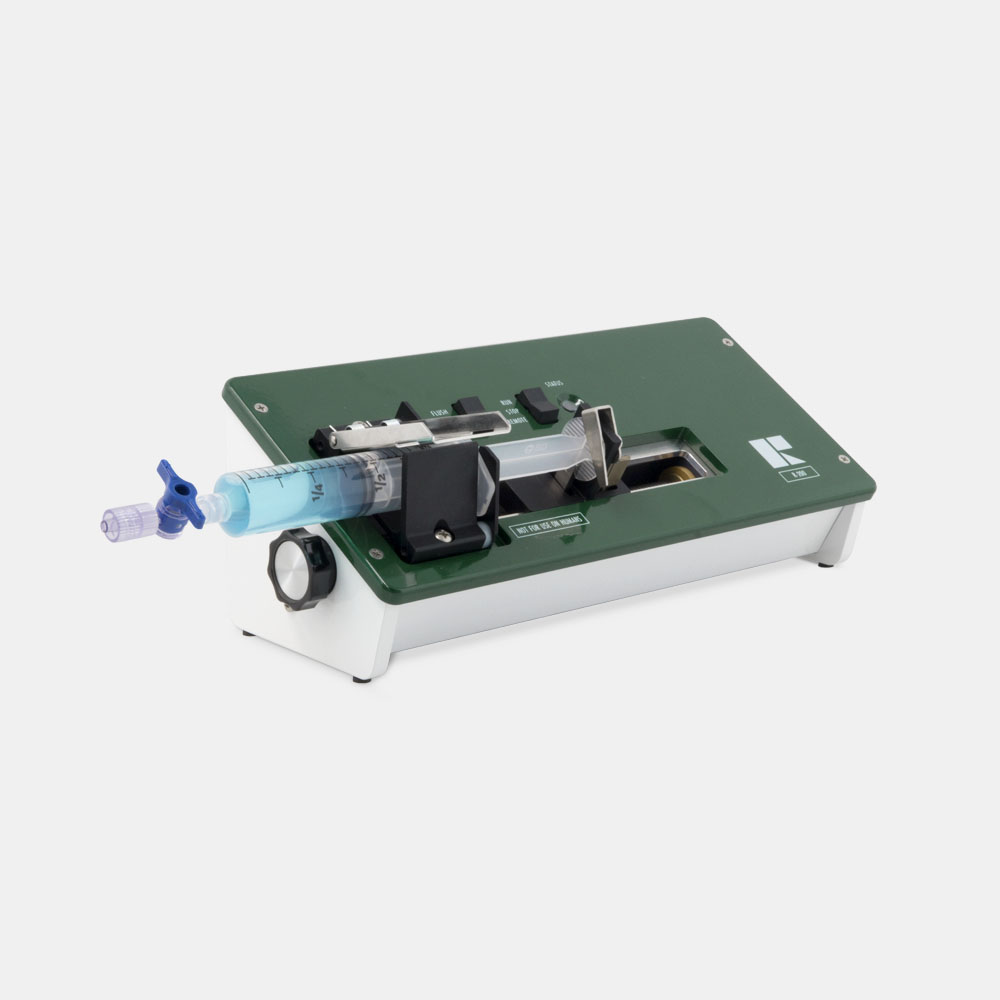

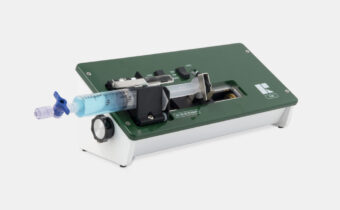

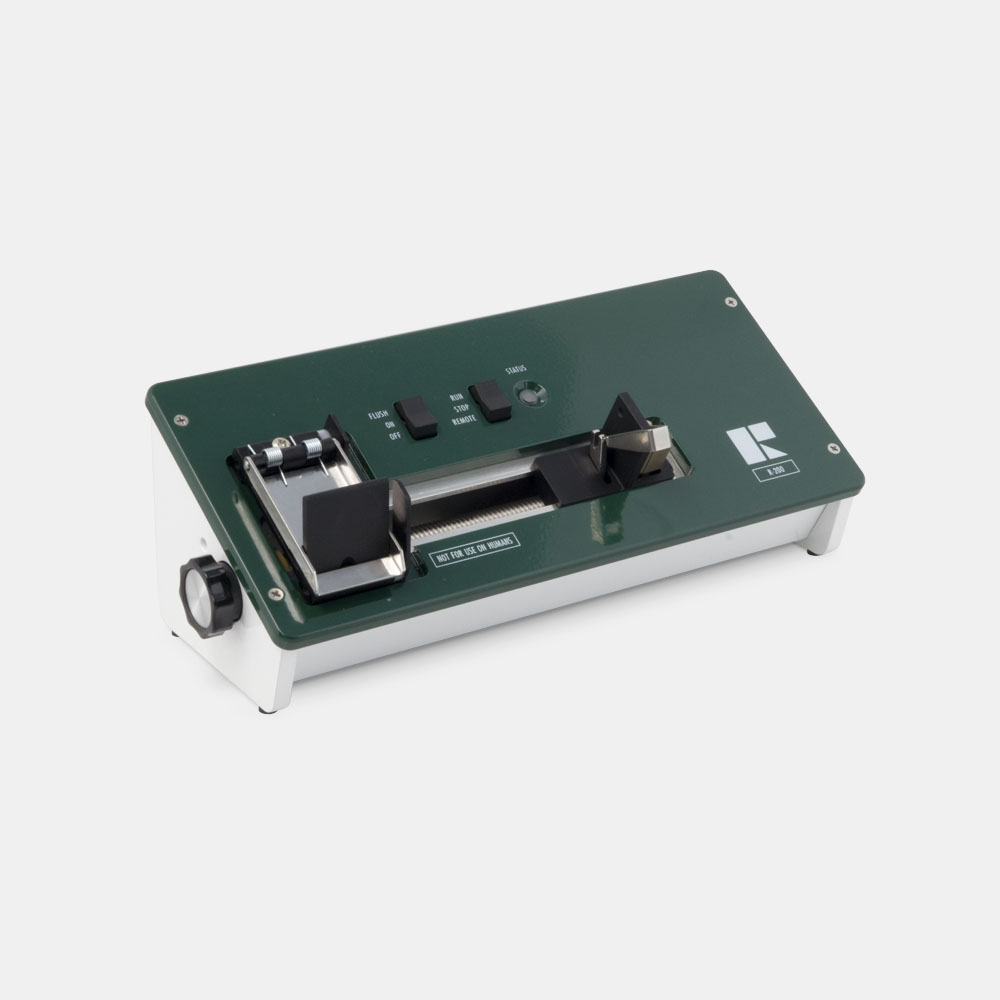

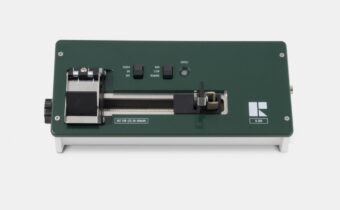

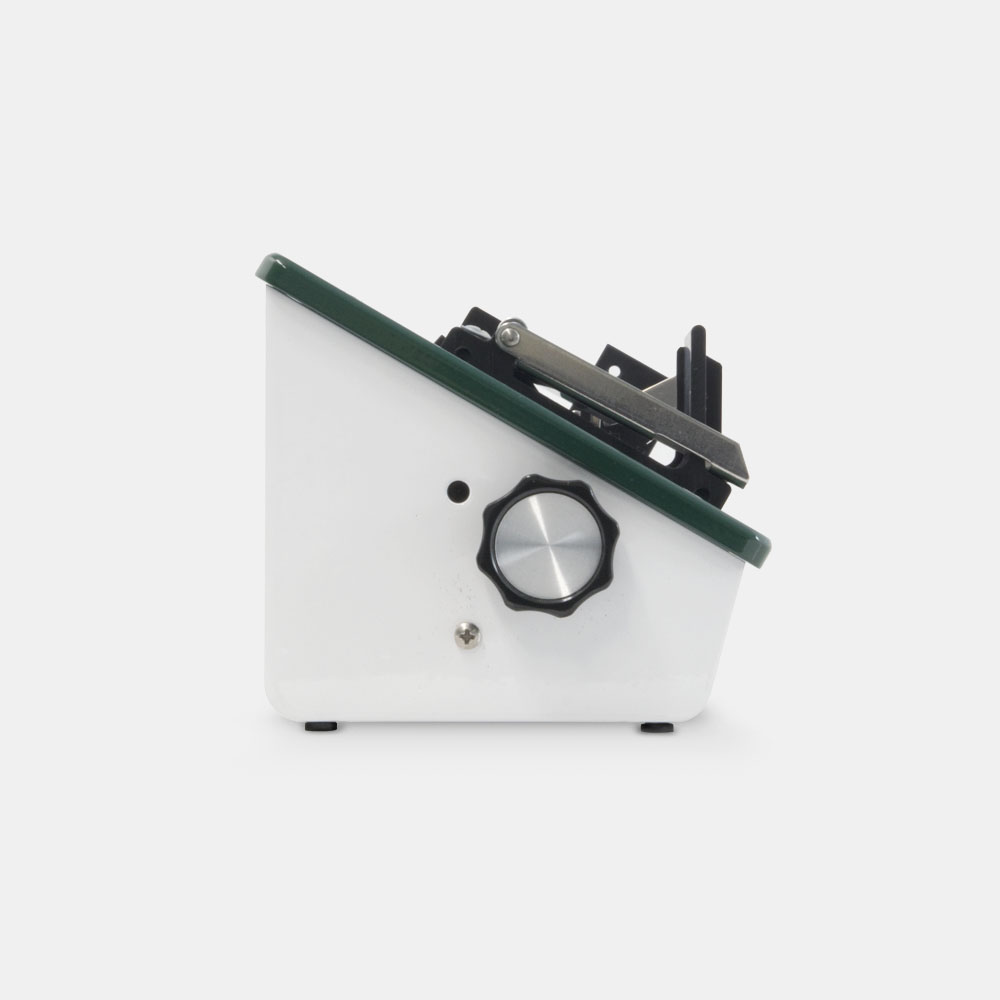

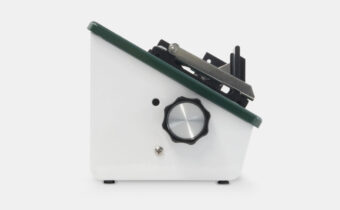

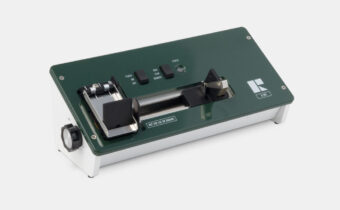

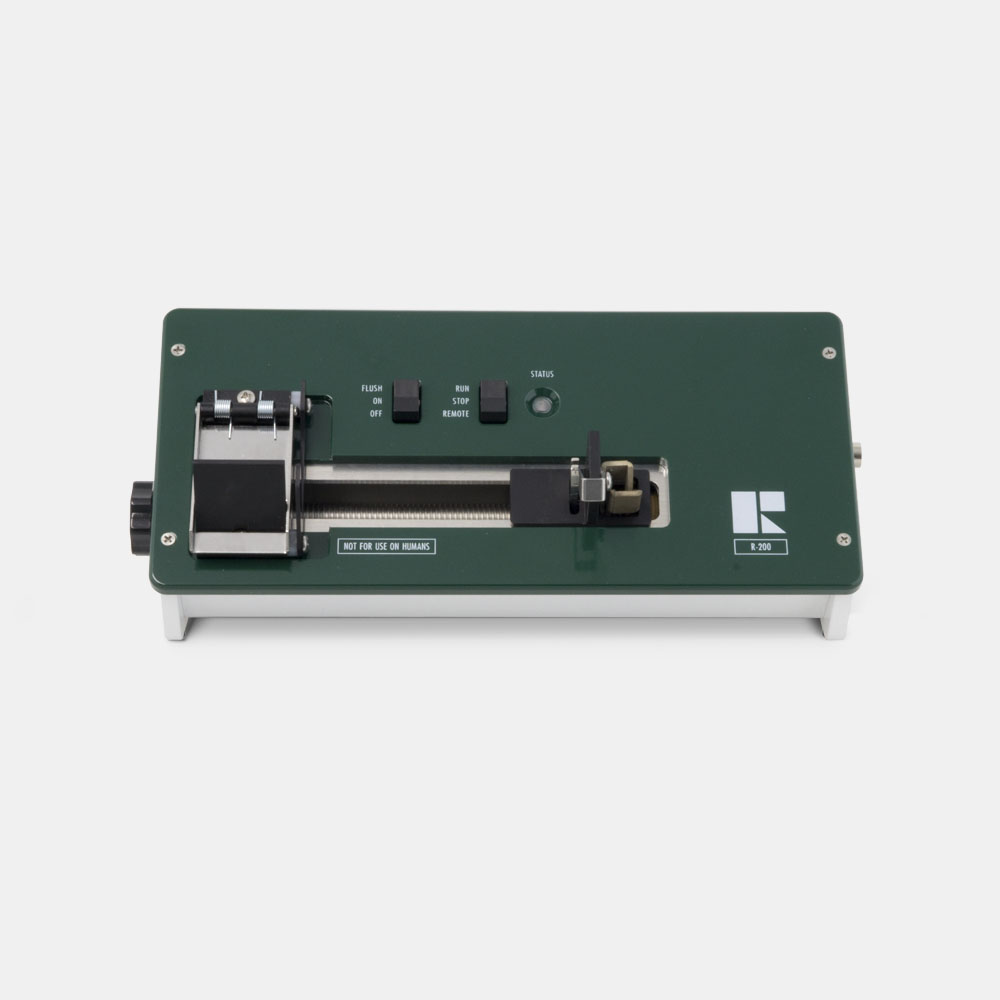

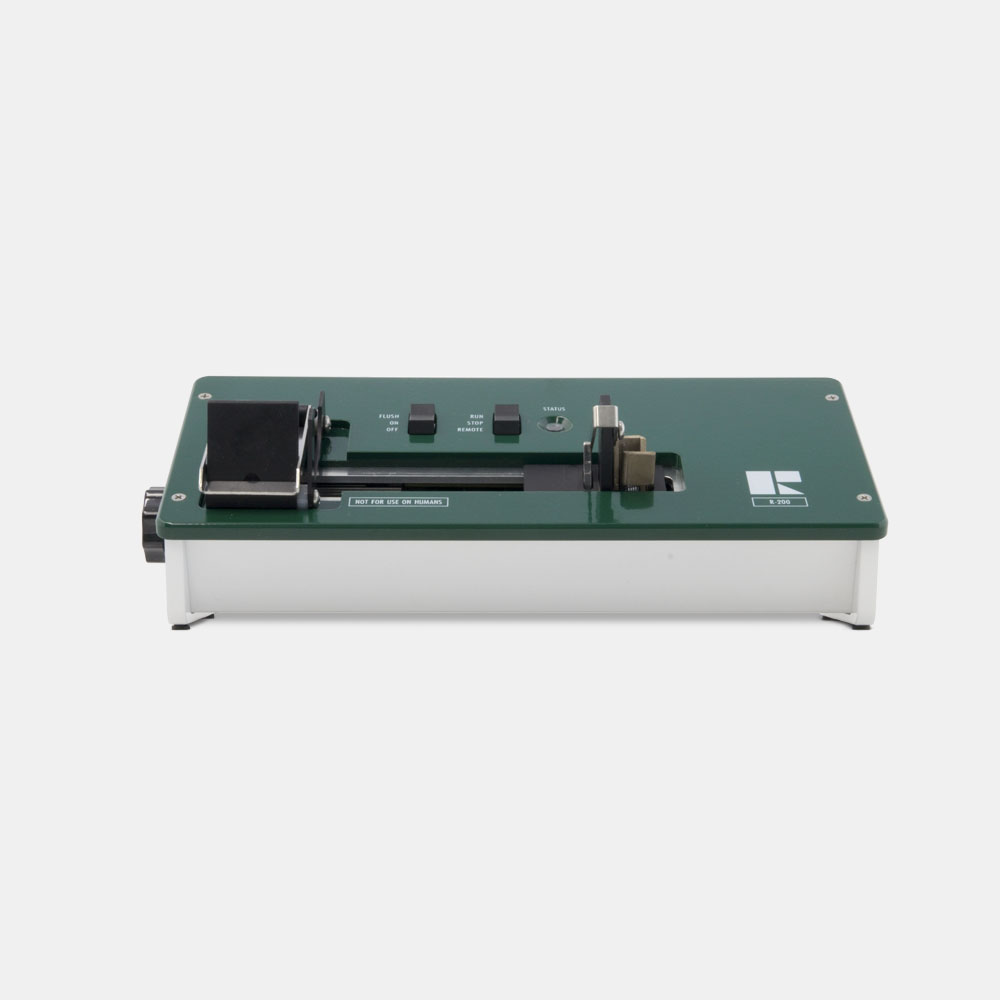

R-200

The next generation of our time-tested syringe pump has significant improvements, including a complete redesign of the enclosure, anti-siphoning hardware, and a purge/flush feature.

The motor is single fixed speed, the speed of the motor determines the infusion rate for the syringe.
Speeds available: 0.1, 0.5, 1, 1.5, 2, 3.33*, 5, 10, 15, 20, 30 RPM
*NOTE: 3.33 RPM is standard

You just added "R-200 ( )" to your quote request.

My Quote Request       Continue Browsing

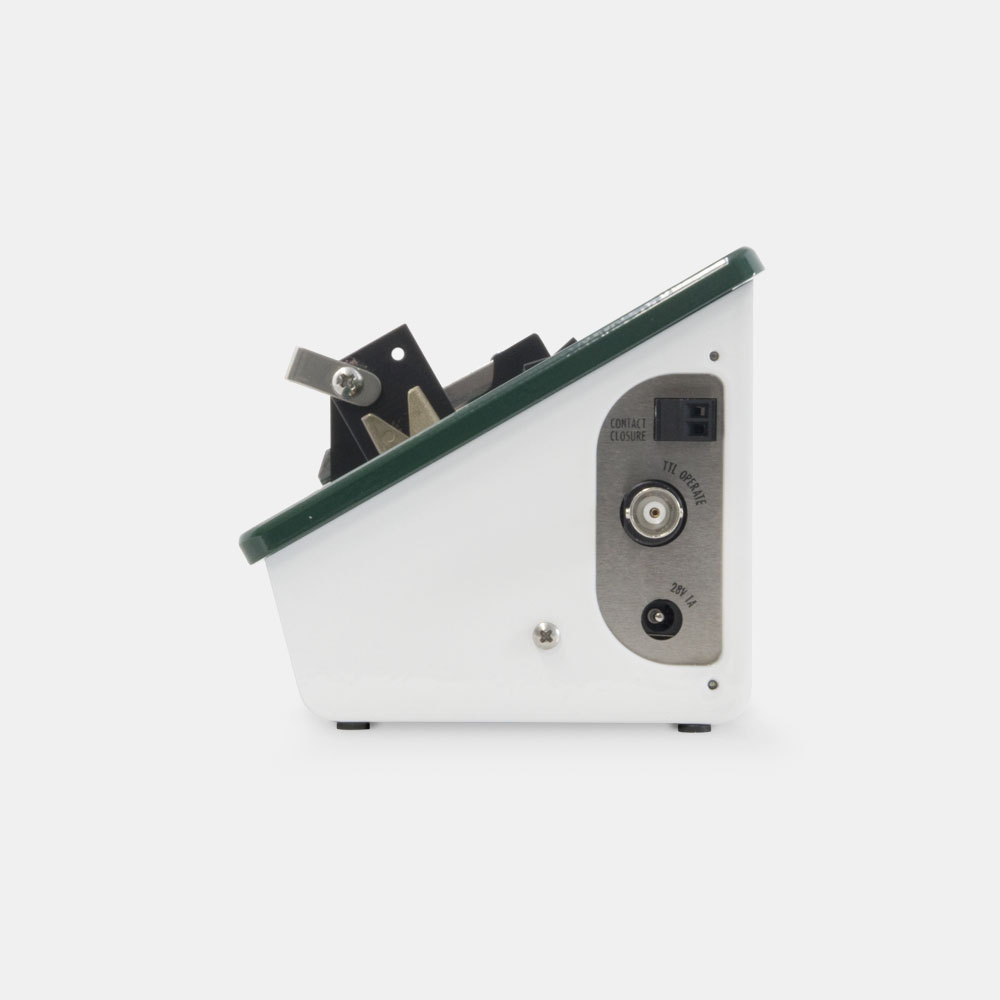

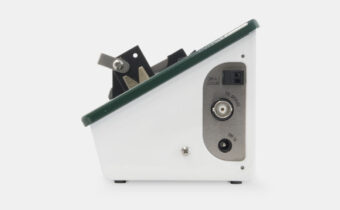

  • Can be operated standalone, or activated and de-activated by a TTL (BNC) output or switch closure
  • Time “on” determines the dose
  • A built-in limit switch disconnects power when the plunger reaches the end of the syringe
  • Stainless steel and aluminum construction

NOTE: A calibration sheet is included with every pump, which supplies a formula for calculating flow rate using any syringe.

[table id=2 /]

1) Infusion range is approximate, calculated using example syringes (1mL = 0.174cm2 / 50mL = 5.477cm2), different syringes may yield greater or lesser infusion rates.
2) Using syringes with plunger flanges greater than 1” OD requires removal of the plunger lock, which disables the syringe reversal feature.

Accessories

  • R-ACC   |  Micro Syringe Insert
